| Price: | US $ 20-50/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | SLP-128 |
|---|---|
| Frame Material: | Aluminum 6061/T6(15hw) |
| Frame Finishing: | Fluorine Carbon Paint Coating(PVDF) |
| Roof Fabric: | 850g/Sqm PVC (Blackout) |
| Sidewalls Fabric: | 650g/Sqm PVC (Half Blackout) |
| PVC Function: | Waterproof/Fireproof/UV Proof |
| Fire Resistance: | DIN4102 B1/M2(Europe Standard) |
| Max Allow Wind Speed: | 100km/Hour |
| Top Style: | Ridge Tent |
| Capacity: | >10 |
| Material: | PVC |
| Usage: | Relief |
| Pole Material: | Flexible Poles,aluminium Alloys |
| Structure: | Single Skin |
| Color: | White |
| Waterproof: | Waterproof |
| Customized: | Customized |
| Style: | Non |
| Season: | All |
Standard Size(custom-made size is welcome)
1)Span Width: 3m,6m,8m,9m,10m,12m,15m,18m,20m,21m,25m,30m,40m.
2)Length: not limited,extended by 3m/unit or 5m/unit.
3)Eave height: from 2m to 10m,standard is 2.5m,3m,4m and 5m.
Frame Material:
1)Hard pressed extruded aluminium 6061/T6(15HW) with Fluorine carbon paint coating(PVDF)
2)Conector is made of zinc powder-coated steel.
3)The frame is strong,durable,light in weight,not easy to rust and distort.
Fabric Material:
1)Double PVC-coated polyester textile.Any color is available.
2)850g/m2 for roof PVC,650g/m2 for sidewall PVC.
3)Waterproof and anti-leakage,Anti-UV,Anti-mildew,flame retardant to DIN4102 B1/M2
4)Temperature resistance(°C) :-40°C-70°C.
Character & Features:
1)The maximum allowed wind speed is 100km/h.
2)No pole inside,space can be 100% utilized.
3)very easy and very fast to install and dismantle.
4)Convinient to transport and store,Temporary or permanent use is available.
5)Can be fixed on all grounds with Expansion screw/Steel nail/Weight plate.

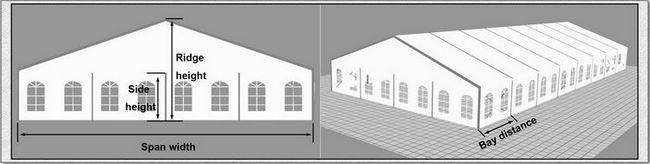

Detail specifications:
| Specification | Span width (m) | Bay distance (m) | side height (m) | Ridge height (m) | Main frame profile (mm) |
| SLP-3 | 3 | 3 | 2.5 | 3 | 48×84×3 |
| SLP-6 | 6 | 3 | 2.5 | 3.5 | 48×84×3 |
| SLP-8 | 8 | 3 | 2.5 | 3.9 | 48×84×3 |
| SLP-10 | 10 | 3 | 2.5 | 4.3 | 48×84×3 |
| SLP-12 | 12 | 3 | 2.5 | 5.2 | 68x122x3 |
| SLP-15 | 15 | 5 | 3 | 6.43 | 108×150×3 |
| SLP-18 | 18 | 5 | 4 | 6.9 | 112×203×4.5 |
| SLP-20 | 20 | 5 | 4 | 7.2 | 112×203×4.5 |
| SLP-25 | 25 | 5 | 4 | 8.0 | 112×203×4.5 |
| SLP-30 | 30 | 5 | 4 | 8.8 | 113×259×5-5.5 |
| SLP-40 | 40 | 5 | 4 | 10.5 | 120×300×5-8 |
| SLP-50 | 50 | 5 | 4 | 12 | 120x350x5-8 |
