| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Tsc110110e |
| Laser Power: |
10W/30W/60W/100W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Water Cooling |
| Control: |
CNC |
| Gurantee: |
1 Year |
| Certification: |
Ce SGS FDA,CCC,BV |
Product Description

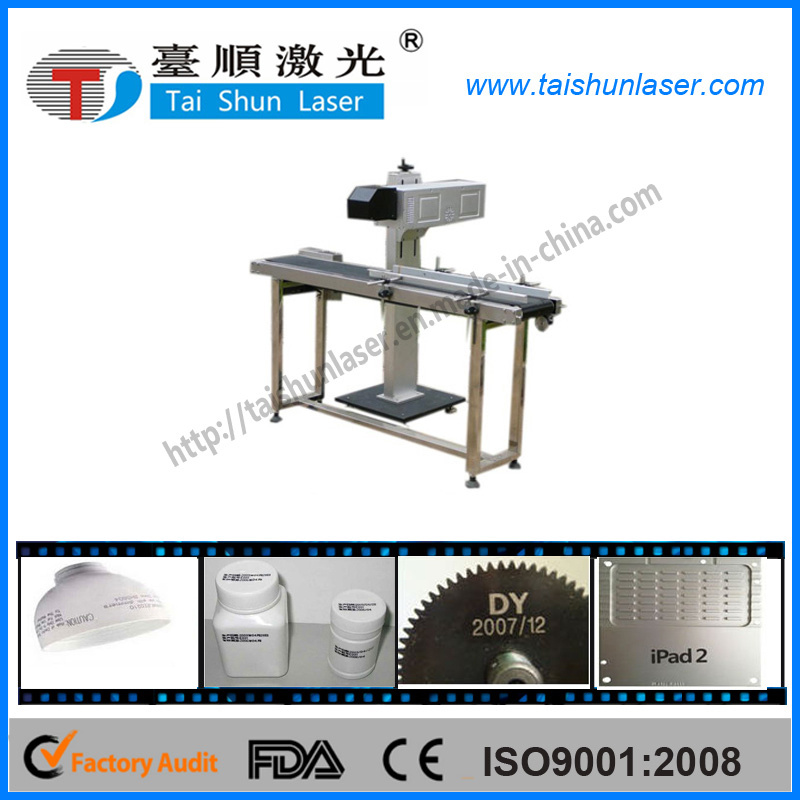

Hot Sale 10W 30W 60W/100W CO2 laser marking machine with flying table
Brief Introduction of the co2 laser marking machine:
In normal galvanometer marking system, the focus lens is behind focus.When the laser goes through focus lens to focus, it will emit directly to the material.So the working area is decided by the area of focus lens.
In dynamic marking system, there is a spacial dynamic lens.The laser will go out through dynamic focus which is the front focus.The working area can be adjusted by the dynamic focus from small to large.
Equipment Performance of co2 laser marking machine:
It adopts Coherent or Rofin CO2 laser source from America with stable laser output, high quality laser beam, long service time and high precision.Compared with normal marking system, it has higher speed and better beam facula.It works so best in leather cutting and marking industry.
Application Field of co2 laser marking machine:
Material:Non-metal materials such as leather, cloth, wood, acrylic, ABS, paper, acrylic etc.
Field:Glass industry, package industry, sign industry, leather products industry, wood industry especially for LGP Engraving, Dotting, LGP LED panel lighting / LED ceiling / TV monitor / Laptop monitor LED Backlight Panels etc.
>>>Technical index
Model | TSC110110E |
Laser Power | 10W/30W/60W/100W |
Laser Wavelength | 10.64um |
Standard Marking Area | 110×110mm |
Optional Marking Area | 70×70mm/175×175mm |
Marking Speed | 0-7000mm/s |
Marking Depth | 0.01-0.5mm |
Repeatability | 0.005mm |
Min linear width | 0.01mm |
Cooling method | Air cooling system |
Working power | 220V/50Hz/15 |
>>>Machine Feature
1.Stable laser output and good beam quality
2.Support DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, letter, 2D code, incrementing serial No., automatic jump codes, etc.
3.Cooling way:Two kind of cooling:Low power with air cooling, high power with water cooling.
4.Rotary clamps for engraving:Can engrave not only sheets, but also roll materials and cylinders such as pencil vase, flute, bottle and so on
>>>Company information
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
>>>After-sale service
1.One year guarantee period for product quality.(man made damaged is negotiable).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Free training for machines installation and operation of the staffs.
5.Free samples marking of customer provided.
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
