Prod Model: |
LY-DB430 |
Name: |
Doy Bag Packing Machine |
Pouch Size-Length: |
100-430mm |
Pouch Size-Width: |
100-300mm |
Delivery: |
25 Days |
Packing Speed: |
5-30 Bags/Min |
Reference Filling Range: |
5-2500g |
Compress Air Required: |
0.65MPa |
Compress Air Consumption: |
0.5 M3/Min |
Voltage: |
AC220V 50/60Hz |
Power: |
1.5kw |
Automatic Grade: |
Automatic |
Application: |
Food Industry,Non-Food Industry |
Driven Type: |
Pneumatic |
Material Type: |
Solid |
Packaging Material: |
Film |
Packaging Type: |
Bag |

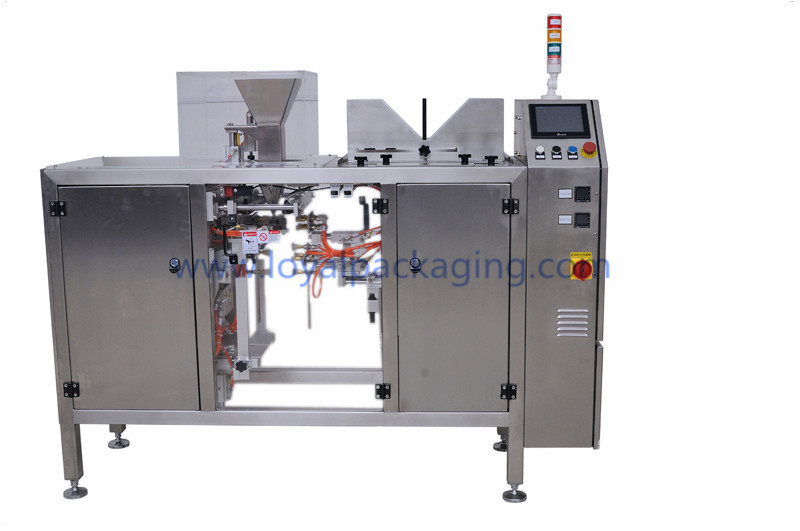

Product Description

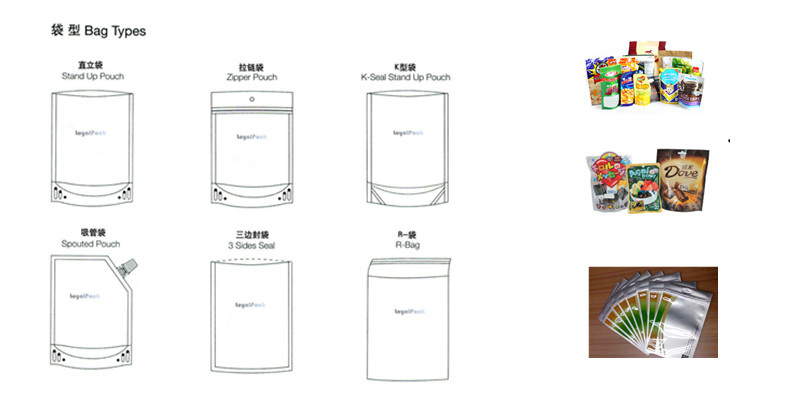

Packaging machine for premade bags with zipper Application: This machine is applicable for dosing powder, granule or liquid into a pre-made pouch and sealing, the detail application description as following : Applicable Pouches:Laminate heat sealable pre-made pouches like flat pouch , gusset pouch, normal stand up pouch, or stand up pouch with zipper etc Applicable Products:Configure with different dosing devices, capable to pack with liquid, powder granule, or other irregular solid materials. Applicable Packaging Material:Laminate Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL etc Main Features
Standard Features• Heat sealable premade flat pouch dosing and sealing• PLC & HMI Control , Easy for parameter setting and troubleshooting• Different pouch size adaption, simple adjustment without tools• Intelligent temperature controlling configuration, ensure the artistic and neat sealing.• Pouch saving design, no completely opened pouch, no filling and sealing.• Compatible Programs of powder, granule or liquid dosing, plug and play, easy for different products switching• Machine stopping interlock with door opening Optional Features• Pouch zipper opening function• Gusset pouch opening function• Vibrating product dosing function which apply for product without good fluidity• Vibrating compacting function which enhance packaging density• Air/Nitrogen Inflating, Air deflating function• De-dusting device to enable clean packaging environment and ensure quality of sealing• Different types of code printing function Technical specification |
| LY-DB300 | LY-DB430 | LY-Duplex |
Pouch Size-Length | 100-300 mm | 100-430 mm | 100-300 mm |
Pouch Size-Width | 100-300 mm | 100-300 mm | 100-200 mm |
Packing Speed | 5-15 | 5-15 | 10-30 |
Reference Filling Range | 5-1500 | 5-2500 | 5-1000 |
Voltage | AC220V 50/60HZ | AC220V 50/60HZ | AC220V 50/60HZ |
Power Consumption | 1.5KW | 1.5KW | 1.5KW |
Compress Air Required | 0.65Mpa | 0.65Mpa | 0.65Mpa |
Compress Air Consumption | 0.5 m3/min | 0.5 m3/min | 0.5m3/min |
Dimension | 1750*510*1300 mm | 1750*510*1650 mm | 1750*750*1450 mm |

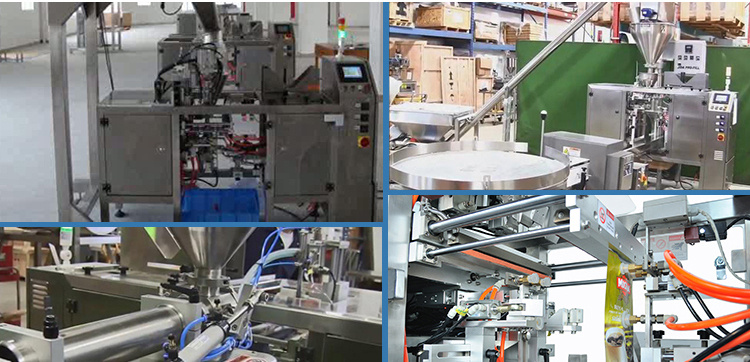

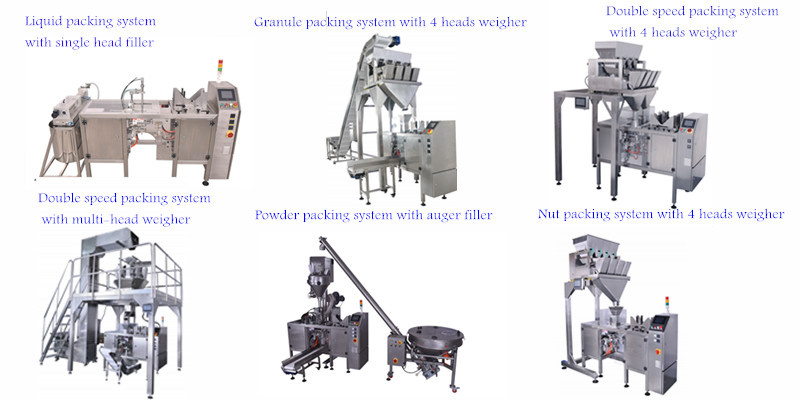

Details ShowWorking ProcessRecommend Packing Systems
Our servicesPre-sales
1. Within 2 hours inquiry feedback between 8:00am--20:00pm
2. 24 hours technical proposal
3. Full assistance product selection
4. Free for designing and drawing In-sales
1. 4 times producing feedback
2. Full supervision during production
3. 24 hours standby to make sure you can find us
4. Free installation and debugging before delivery
5. Free for training operator and mechanic
After-sales
1. At least 3 times following up
2. Email or online help after good arrived
3. Oversea installation and testing is available
4. Cost price for maintaining the machine and accessories beyond one year warranty. FAQ- Trade terms: EXWORK,FOB,CIF,CFR
- Payment terms : T/T 30% deposit, 70% balance before delivery
- Delivery Time : Usually 25-35 days, depends on different order quantity.
- Shippment : By sea, by air ,by railway or by truck, according to customer requirement
- Packing :Bubble film wrapping inside, Export Standard Plywood Case outside.
- Warranty :One year free for replacement of wearing parts, cost price beyond warranty
