Price: | US $ 50-60/Roll |
---|---|
Min Order: | 1/Roll |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | LF |
---|---|
Product Name: | PMMA End Glow Fiber Optic Light |
Fiber Material: | PMMA |
Fiber Diameter: | 0.25-3.0mm |
Weight: | 2.5kg/Roll |
Application: | Decorative Lighting |
OEM: | Yes |
Light Source: | LED |
Color: | RGB |
Certification: | RoHS |
With Light Source: | Without Light Source |
Applicable Scope: | Fiber Optic Lighting |
Manufacture PMMA Lighting End Glow Optical Fiber
A. Features:
B. Fiber Optic Application:
C. Fiber Optic Basic Properties:
Fiber core material | Polymethyl methacrylate (PMMA) |
Clad material | Fluororesin |
Appearance | Smooth, transparent |
Numerical aperture | 0.5 |
Elongation-at-yield rate | ≥4 |
Allowable bend radius | No less ten times of the optical fiber diameter |
Using temperature range | -20~+70 centigrade |
D. Model Specifications:
Model | Fiber diameter(mm) | Roll length(m) |
LF-250 | 0.25 | 12000 |
LF-500 | 0.5 | 6000 |
LF-750 | 0.75 | 2700 |
LF-1000 | 1.0 | 1500 |
LF-1500 | 1.5 | 700 |
LF-2000 | 2.0 | 350 |
LF-2500 | 2.5 | 250 |
LF-3000 | 3.0 | 150 |

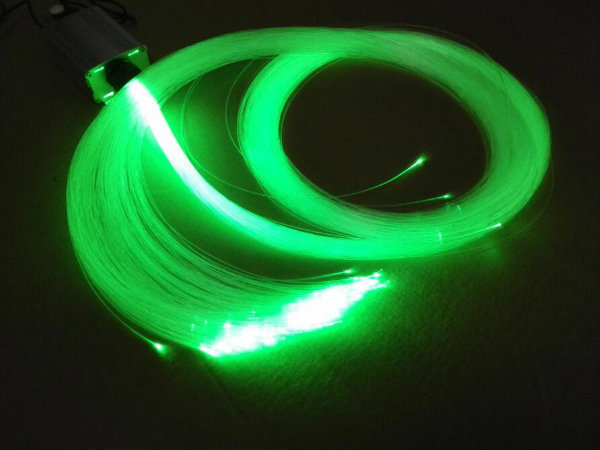

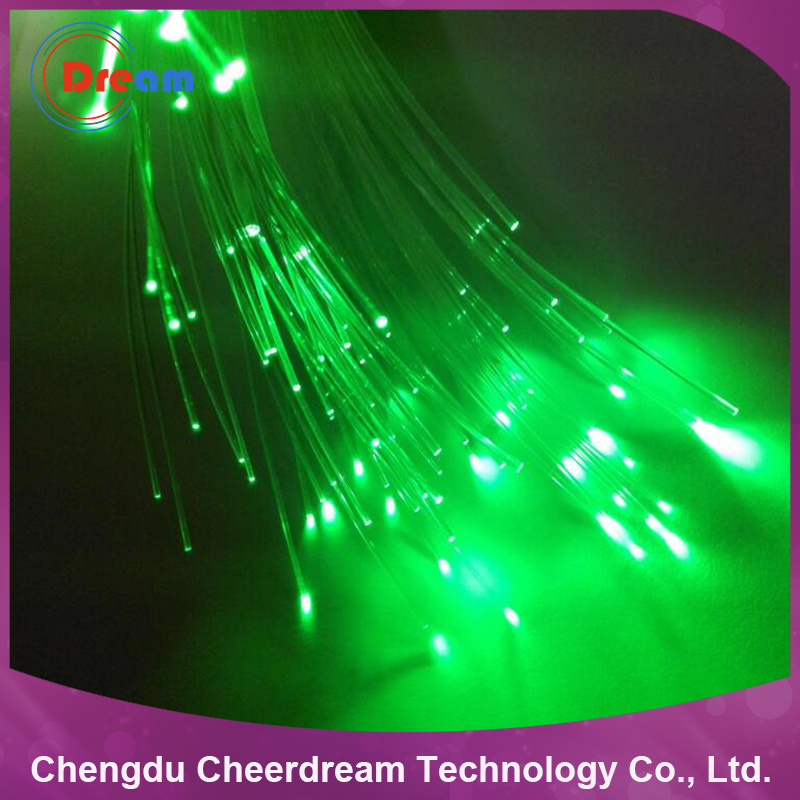

E. PMMA Fiber Optic Show:

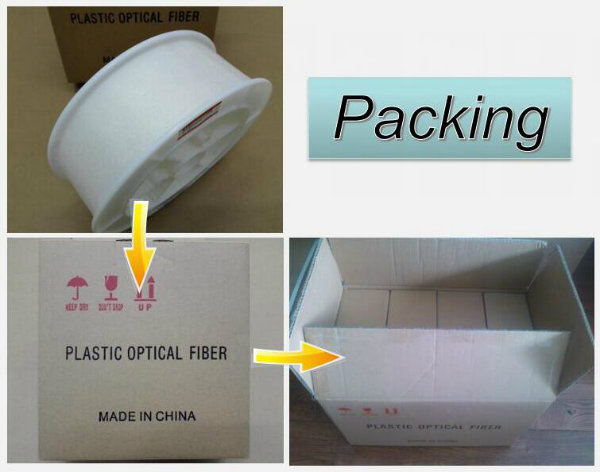

F. Plastic Fiber Optic Packing:

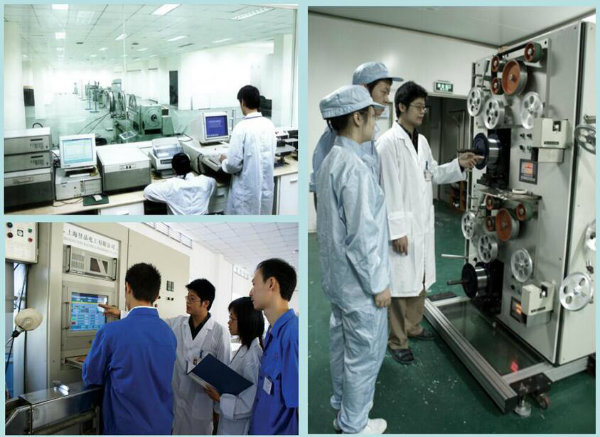

G. Factory:
H. FAQ:
1. Where is your company?
Our company lacated in Chengdu City, Sichuan Province. Welcome to visit our company.
2. Is the PMMA lighting fiber optic sample available?
Yes, we can provide free samples of the fiber optic for you to check the quanlity.
3. Can you provide OEM service?
Yes, we can provide OEM service.
I. Our Services:
1. Your inquiry related to our products or prices will be replied in 6 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. Best after-service
4. Supply full accessories related to our main products
