Prod Model: |
KE30S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Normal Size: |
25mmx0.5mmx3m |
Raw Material: |
Silicone Rubber |
Tensile Strength: |
Above 700psi |
Feature: |
Waterproof, Sealing, Insulation |
Application: |
Electrical Winding Insulation |
Type: |
Insulation Tape |
Chemistry: |
Hybrid Insulation |
Material: |
Silicone |
Thermal Rating: |
250 250 |
Maximum Voltage: |
20KV~100KV |
Color: |
White, Black,Red,Yellow,Green,etc |
Brand: |
Maxwel |

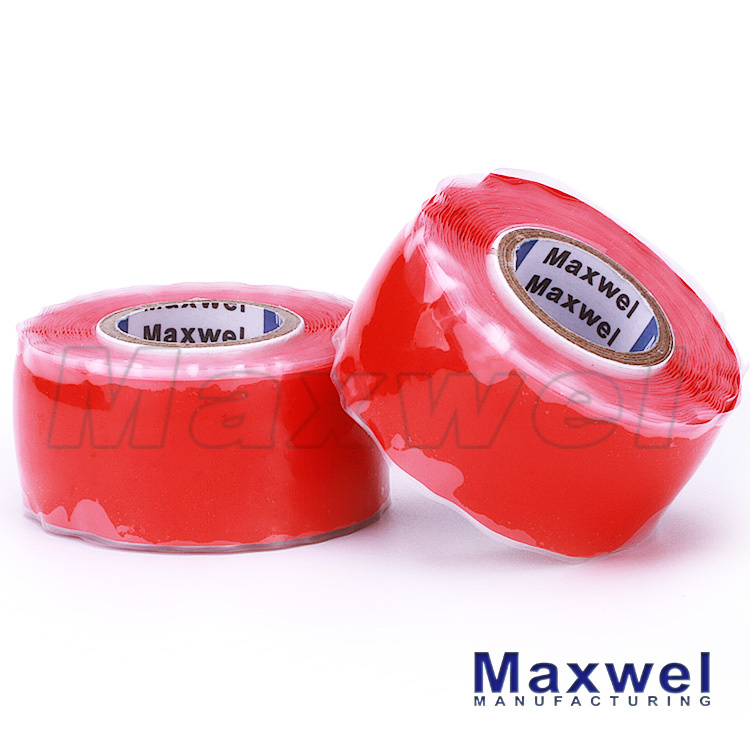

Product Description
Size: 25mm X 3m(special size can be requested)
Thickness: 0.50mm
Colour: Black, blue red, yellow( any colour can be requested)
Features:
Excellent track restistance
Excellent arc resistance
Excellent ozone resistance
High dielectric strength
Workable in extremely low temperature
Water-proof
Self fusing silicone rubber tape, silicone rubber tape, silicone tape sew, heat resistant silicone rubber tape, waterproof rubber tape

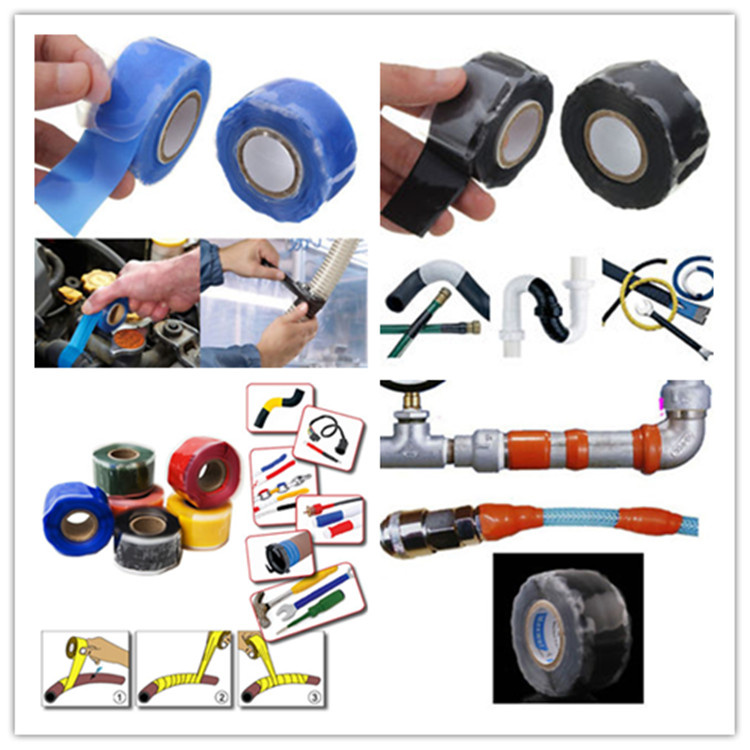

Applications:
Automotive repair
Jacketing high voltage terminations
Motor lead insulation
Boat rigging wrapping
Flexible heater repair
Extension cord "connection" wrapping
Heavy duty industrial pipe wrapping
Tool handle wrapping
"final wrap" for electrical distribution connections
Power & hand toll insulation
Underwater uses
Emergency radiator hose repairs; Emergency insulating&barrier tape
Fishing industry uses
Military applications
Insulating generator coils
Temporary hose repairs
Harness wrapping: Automotive, aircraft, protective.
Normal Size | 25mm x 3m x 0.50mm ( special size can be requested) |
Color | black, blue red, yellow( any colour can be requested) |
Temperature Range | -130°F to +500°F |
Electrical Insulation | 8000V |
Heat Resistance | 500°F |
Tensile Strength | 700psi minimum |
Features | Waterproof, Airtight, Acid & UV Resistant |
